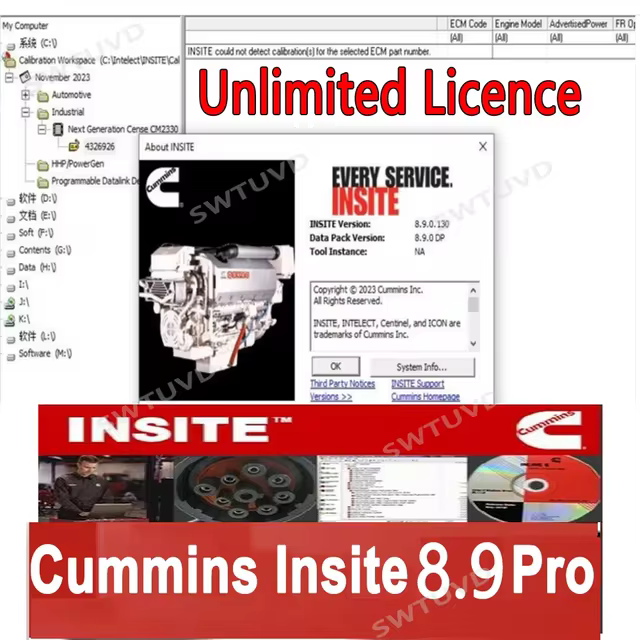

Newest Cummins Insite 8.9 PRO with Keygen - Stage ECU World

Engine Diagnostic Software Fault Code Engine Diagnostic Test Adjustment Edit RemoveECM

1. General Information

Upgrade Capability

Upgrade from INSITE 8.7.x or 8.8.x

2. New Base Features

NOTE: No new Base Features have been implemented

3. New Diagnostic Tests

NOTE: These will only display if supported and enabled in the calibration

3.1 High Pressure Common Rail Fuel Pump Performance Test

Analyzes High Pressure Common Rail Fuel Pump when troubleshooting low fuel rail pressure

and other performance issues

3.2 Fuel Supply Capacity Test

Determines if fuel system components are meeting flow demand of the high pressure fuel

pump

3.3 Thermal Management System Manual Deaeration

Allows command of an electric vehicle’s Thermal Management System (TMS) pumps at various

speed to support the system deaeration process

3.4 High Pressure Common Rail Rapid Leak Test

Detects the presence of the abnormal flow conditions for high pressure common rail system

4. New Advanced ECM Data

NOTE: These will only display if supported and enabled in the calibration

4.1 Charging Control Battery Pack Isolation Reset

Allows performing battery pack isolation reset operation after battery isolation service repair

has been completed

4.2 Aftertreatment Dosing Learn Reset

Provides the ability to reset the dosing learn parameters such as pump motor speed whenever

the DEF pump or injector is replaced

4.3 Diesel Exhaust Fluid (DEF) Pump Filter Life Monitor

Provides ability to monitor remaining life of DEF Pump Filter, configure monitoring modes and

reset applicable log data when filter is replaced during a service event

4.4 Fuel Filter Life Monitor

Provides ability to monitor remaining life of Fuel Filter, configure monitoring modes and reset

applicable log data when filter is replaced during a service event

4.5 Oil Life Monitor

Provides ability to monitor remaining life of oil, configure monitoring modes and reset

applicable log data when oil is replaced during a service event

4.6 Turbocharger Life Monitor

Provides ability to configure and monitor remaining life of Turbocharger as well as reset

applicable log data when Turbocharger is replaced during a service event

4.7 Engine Protection High Temperature Coolant Pressure Differential High

Provides record of the latest five engine derate and shutdown events when High Temperature

Coolant Pressure is detected below operational threshold

5. New Features and Parameters

NOTE: These will only display if supported and enabled in the calibration

5.1 Starter Lockout Neutral Gear Check

Prevents the starter from being engaged if the engine has already been started

5.2 Smart Fuel Economy

Allows automatic override to Performance mode when the accelerator pedal is kept full for a

specific time or altitude is too high

5.3 Vehicle Smart Accessories Management

Utilizes upcoming road terrain and predictive functionality to improve fuel economy through

use of Smart Accessories such as the air governor and alternator

5.4 Air Compressor Activated

Allows enabling the air compressor when equipped

5.5 Battery Inlet Coolant Temperature Sensor

Provides ability to monitor Battery Inlet Coolant temperature and sensor voltage

5.6 Cabin Heater Outlet Temperature Sensor

Provides ability to monitor Cabin Heater Outlet temperature and sensor voltage

5.7 High Voltage Battery System Monitor
Provides ability to monitor temperature, voltage and current for the High Voltage Battery
System

5.8 High Voltage Interlock Loop Status
Provides ability to monitor whether the High Voltage Interlock Loop Status is open or closed

5.9 Datalink Engine Control
Displays source address of the device that the ECM is currently allowing to control the engine
as well as the acknowledged control mode, engine torque and speed.

6. New Product Support

Komatsu NextGen HD13
L9 CM2450 L164C

L9 CM2450 L165C

B6.7 CM2350 B198C

B6.7 CM2450 B207C

B6.7 CM2450 B208C

B6.7 CM2450 B209C

B6.7 CM2450 B210C

L9 CM2350 L148C

L9 CM2350 L151C

L9 CM2450 L166C

QSB4.5 CM2670 B201C

Traction Inverter (PDD/Smart Device)



Supported Languages:

English ,Greek ,Romanian
,Chinese (Simplified), Indonesian, Russian
,Czech ,Italian ,Spanish,
Danish ,Japanese ,Swedish
,Dutch ,Korean, Turkish
,Finnish, Norwegian
,French ,Polish,
German ,Portuguese

Electronic Service Tools

System Requirements  :  Windows 10 (64bit)

Licensing Information

Product Based



▪ MR/HD Automotive provides access to the EPA 2007 and above on highway engines in North America and the Euro VI engines for Europe which are listed below.

ISM – CM876 ISL9 CM2250

ISX – CM871 ISX12/11.9/15 CM2250

ISB – CM2150 ISX12 G CM2180 EJ

ISC – CM2150 ISB4.5 CM2350 B104

ISL – CM2150D ISB6.7 CM2350 B101

ISL G – CM218 ISL9 CM2350 L1010

ISB6.7 CM2250 ISX12/15 CM2350 X102/X101

ISC8.3 CM2250 Turbo Actuator Controller

Aftertreatment Diesel Exhaust Fluid Controller

▪ MR/HD Plus provides access to all applications and engines except High Horsepower (HHP) engines.

▪ Service Plus provides access to all engines and applications that INSITE supports.

Functionality Levels

▪ Pro is the highest level of functionality that INSITE provides, which includes calibration download.

– NOTE: Requires certification by Cummins distributor to obtain this type of license.

▪ Lite provides all of the functionality of Pro except for calibration download capability.

▪ RSGR/Industrial Pro functionality limits the access to Road Speed Governor parameters and Industrial Pro provide calibration download to Industrial

products only.

▪ Basic functionality is read only and does not have adjustment or calibration download capability.

RP1210 Device Compatibility

Supported
– INLINE 7
• NOTE: INLINE 5 & INLINE 6 do work with INSITE, but are no longer supported
– Any RP1210 Compliant Datalink Adapters

USBLINK / USB  LINK2 / DAP5



Fault Codes

ECM Diagnostic Tests

Fault Information System

Clearing Fault Codes

Data Monitor / Logger

Graphical Monitoring

J1939 Datalink



Supported Protocols

Engine Program ECM J1708 J1939

480C-E CM552 X X

B5.9G CM420 X

C Gas Plus/B Gas Plus CM556 X X

C8.3G CM420 X

CELECT ECM-B X

CELECT Plus ECM-C X

CELECT Plus Industrial ECM-C X

Centinel CM400 X

CENTRY CM400 X

Gas Compression GTA 3.9/5.9/8.3GC

KTA19/38GC

CM556

SSM558 X

CM2358

ISB CM550 X X

ISB – CM850 CM850 X X

ISB Daimler Chrysler CM551 X

ISBe (4 and 6 Cylinder) CM800 X X

ISBe2/3 – CM850 CM850 X

ISBe4 (4 and 6 Cylinder) CM850 X X

ISC / Transit Bus ISL8.3 – CM850 CM850 X X

ISC/ISL CM554 X X

ISL8.9 – CM850 CM850 X X

ISLe4 (6 Cylinder) CM850 X X

ISM CM570 X X

ISM – CM870 CM870 X

ISM – CM875 CM875 X X

ISM – Fuel Control Module – CM570 CM570 X X

KTA19, G855 CM558 G CM558 X

L Gas Plus CM556 X

L10G CM420 X

PIM CM550 X

QSB5.9/44, 5.9/30, 4.5/30 CM550 X X

QSC8.3/QSL9 CM554 X X

QSK19/23/45/60/78 CM500 X X

QSK19G/38G/60G

QSV81/91 – CM700/SSM558/CM2358

CM500 X

CM700 X

SSM558 X

CM2358 X

QSM11 CM570 X X

QST30 CM552 X

QST30 – Power Gen CM552 X

QSX15 CM570 X X

Signature/ISX CM570 X X

Signature/ISX – CM870 CM870 X X
